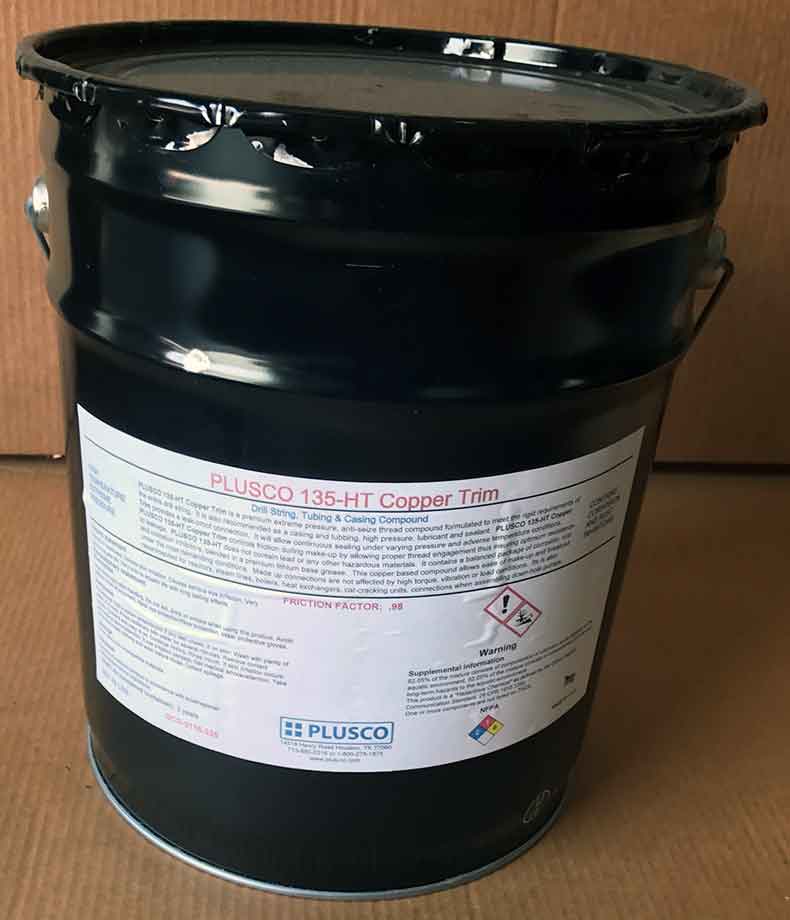

PLUSCO 135
HT Copper Trim



Description


  • PLUSCO 135 HT Copper Trim is a premium extreme pressure, anti-seize, thread compound. Copper Trim provides a leak-proof connection, PLUSCO 135 HT Copper Trim will allow continuous sealing under varying pressure and adverse temperature conditions. Copper Trim controls friction during make-up by allowing proper thread engagement thus insuring optimum resistance to leakage.
  • PLUSCO 135 HT Copper Trim contains a balanced package of corrosion, rust and oxidation inhibitors, blended in a premium lithium base grease. PLUSCO 135 HT Copper Trim does not contain lead or any other hazardous materials. This copper base compound, allows ease of make-up and breakout under the most demanding conditions. Made up connections are not affected by high torque, vibration or load conditions.

Application


  • PLUSCO 135 HT Copper Trim is formulated to meet the rigid requirements of the entire drill string. It is also recommended as a casing and tubing high-pressure lubricant and sealant. PLUSCO 135 HT Copper Trim is also recommended where high temperature conditions exist such as reactors, steam-lines, boilers, heat exchangers or cat-cracking units. Copper Trim is often used on connections when assembling down-hole pumps.

Package


  • 1 GAL PAIL
  • 2 GAL PAIL
  • 3.5 GAL PAIL
  • 5 GAL PAIL
  • 50 LB. ENVIRO. PACK

Specifications


Color Copper Brown
Base Thickener Lithium
Worked Penetration @ 77 °F 310-340
NLGI Grade 1
Specific Gravity 1.3
Dropping Point 500 °F
Oil Separation Nil (0.003%)
Temperature 1800 °F
Friction Factor 0.98
Max. Make-Up Torque 311
Max. Break-Out Torque 187
Service Rating -20 °F to +600 °F
Oxidation Stability Very Good
Rust/Corrosion Inhibited Yes
Water Resistant Yes

Data Sheet






Safety Data Sheet
